VX002 - 1/4" Wall Mounted

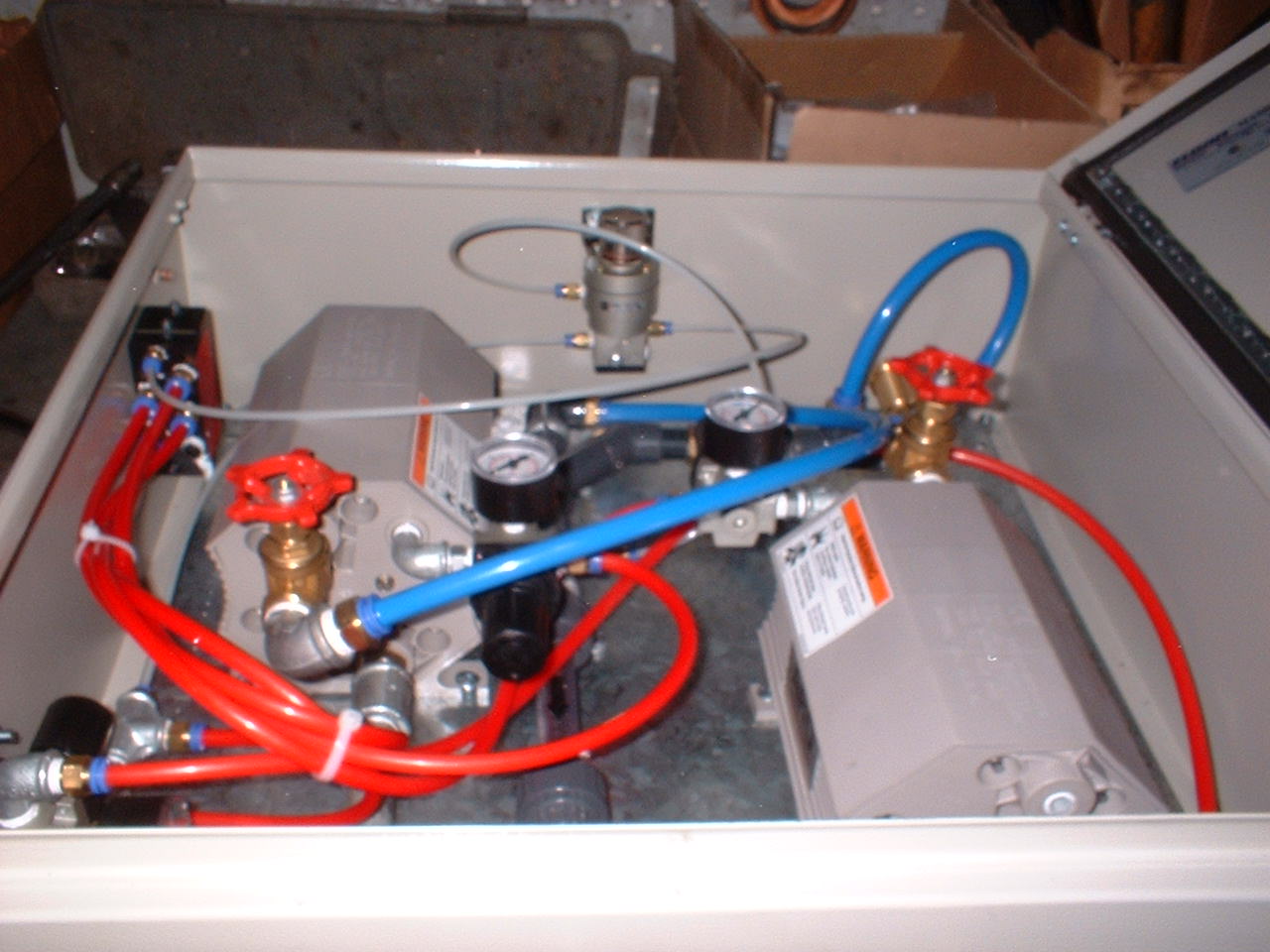

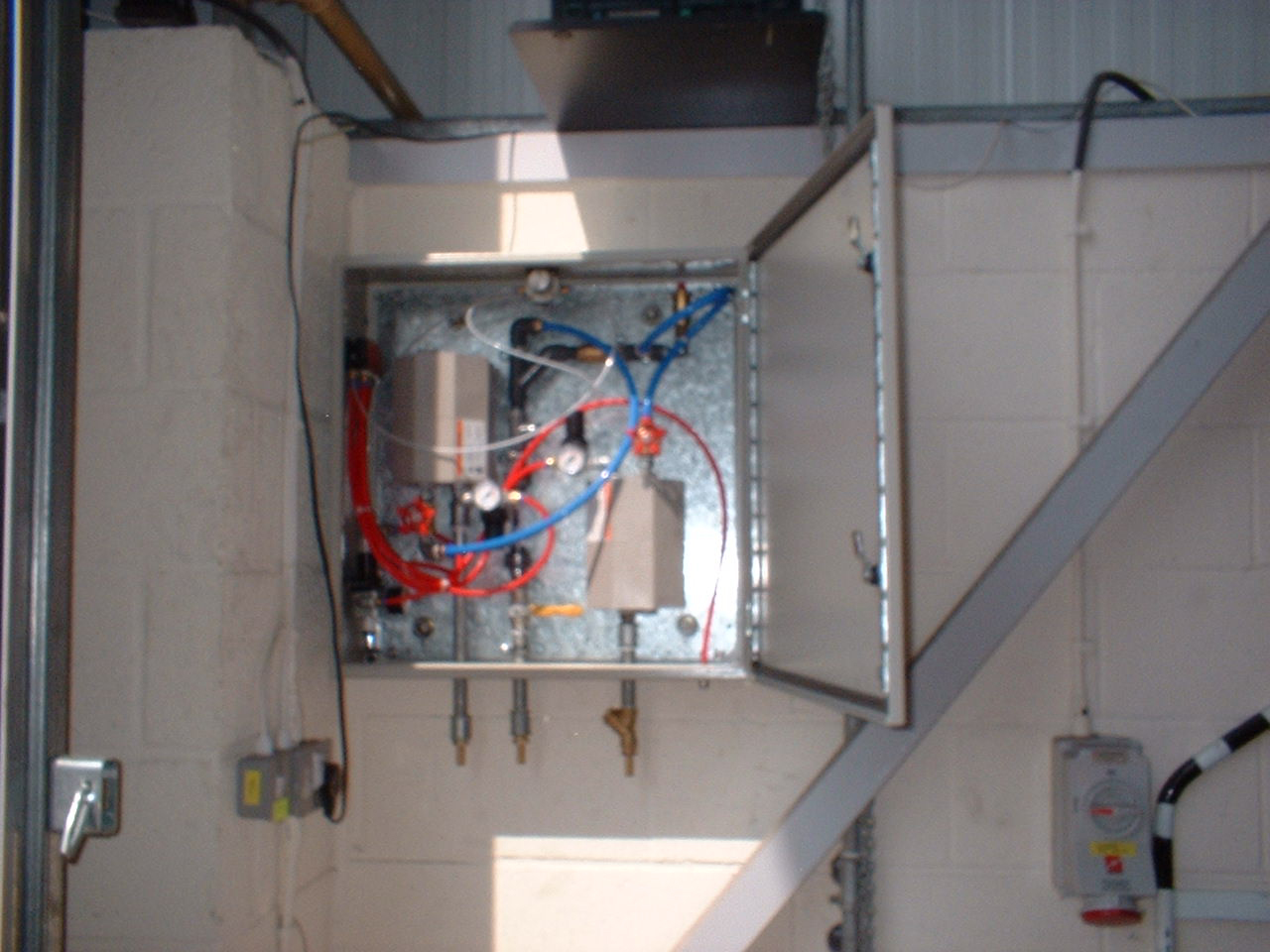

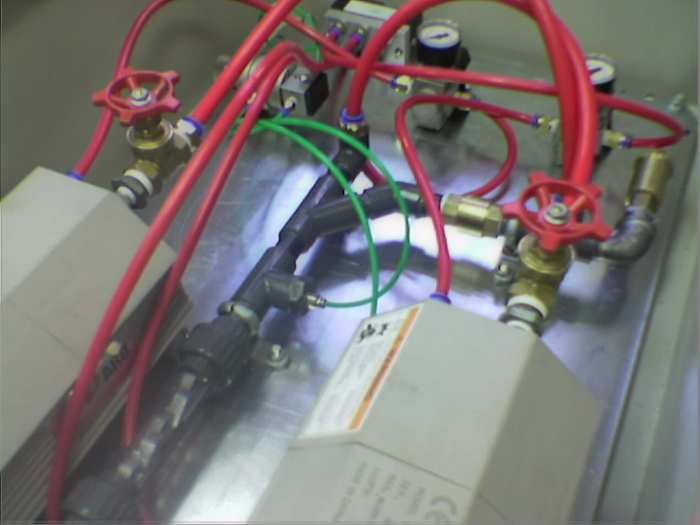

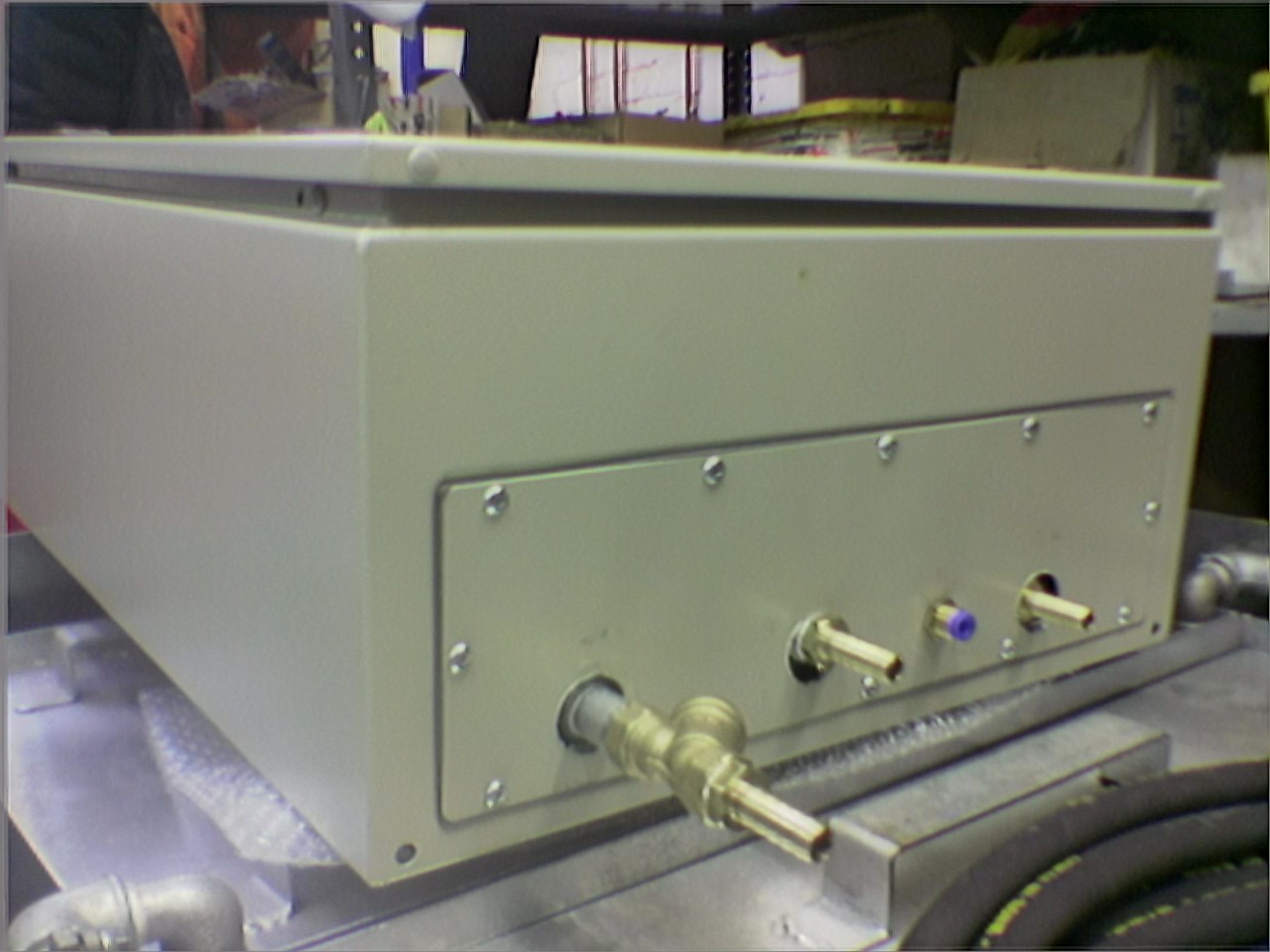

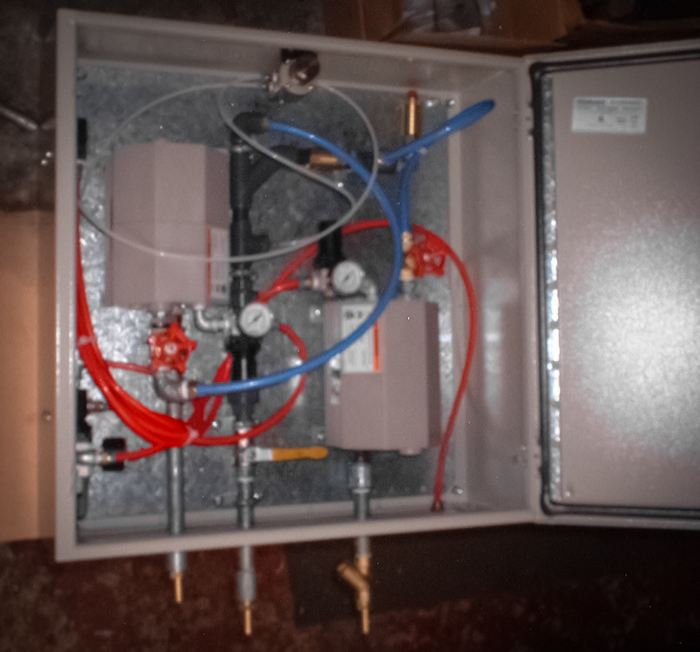

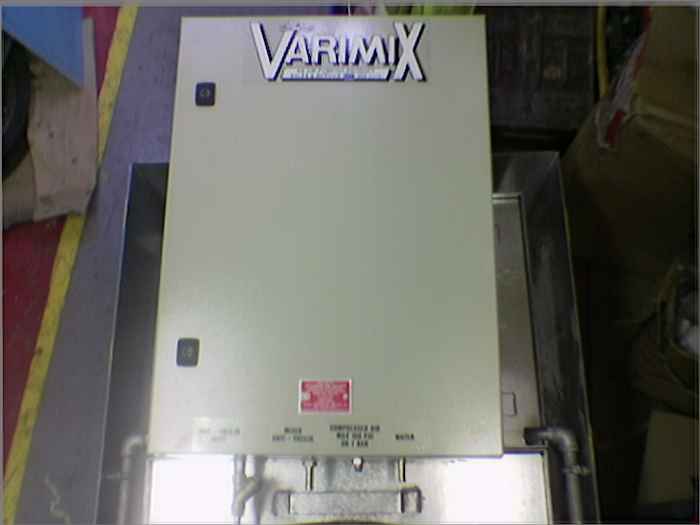

The VX002 is the latest Varimix unit, running two ¼" bore pumps, this unit can mix anti-freeze and water for you at 27.3 litres per minute. Coupled with a full Varimix install from Air Pumping, mixed fluid can be dispensed at any position of your given choice and due to it's unique hardware and design, can be mounted on any supported wall!

If you would like to find out more information on our current units, please check the link at the top of the page where we still have detailed info on the classic series units. We are always happy to hear from our clients to, whether it's for enquiries or support - just give us a call!

Pump Models: 2 x ¼" APA05/PS
Pump Materials: Polypropylene, Santoprene
Varimix Materials: Mild Steel, Polyurethane Seals
System Weight (Dry): 4KGs (Approx. 2KGs each)
System Weight (Full): 60 lbs (25.0 kgs)
Max. Flow Rate: 6 gpm (27.3 lpm)
Max. Suction Lift: 10 ft / 6 mtr s(Dry)
Max. Output per Cycle: 0.022 gallons (0.83 litres)
Max. Particle Size: Clean Fluid Only
Max. Temp. Limits: 35°f - 150°f (2°c - 66°c)
Unit Dimensions: 600mm x 600mm x 300mm (23.6" x 23.6" x 11.8")
Noise Levels @ 70psi: 59.8 - 71.1db (A)
